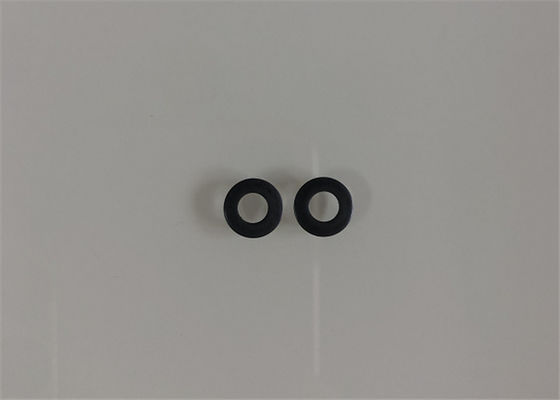

Grade 10.9 Belleville Spring Washer M3.5 Bevel Black Phosphate Din6796

Basic Information
Place of Origin: Anhui, China
Brand Name: Paiensi
Certification: ISO9001
Model Number: M3.5
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: plastic bag + carton + pallet
Delivery Time: 30 days
Payment Terms: T/T
Product Name: Belleville Washer Material: Spring Steel
Size: 3.5 Shape: Disc
Thickness: 0.8mm Surface: Phosphate
Standard: DIN Color: Black
Place Of Origin: Anhui, China Package: Neutral
High Light:

din6796 M3.5 belleville spring washer

,

grade 10.9 belleville spring washer

,

din6796 grade 10.9 bevel spring washer

M3.5 disc spring washer Anti Loosening conical lock washer belleville washer DIN6796 with phosphate for bolted connection

Spring washers are used to compensate for subsidence formation in screw connections and to prevent a loosening or unfastening of the connection. The locking effect is purely frictional.

The special shape (formed like a disc spring) enables the washer to achieve a high spring effect. The spring force resulting from the flattening load washer amounts to 70–90% of the corresponding contact pressure of a screw of grade 8.8–10.9.

The design and manufacture method of these washers make them offer great forces in short travels. It should never be forgotten that their elastic capacity is limited. This is why they are preferred to work under static loads, where they can maintain the pressure over time.

Material spring steel
Finish phosphate
Shape disc
d1 3.7mm
d2 8mm
s 0.8mm
h 0.92-1.06mm
Standard DIN6796
Specification M2-M30
Color black
Hardness as per the standard
Certificate ISO9001
Application automotive industry, wind power machinery, engineering machinery, electrical tool, electrical appliance, general machinery etc.
MOQ negotiable
Price negotiable
Place of origin Anhui, China
Freight by sea
Shipping FOB Shanghai
Lead time 30 days

Grade 10.9 Belleville Spring Washer M3.5 Bevel Black Phosphate Din6796 0



Workshop



Grade 10.9 Belleville Spring Washer M3.5 Bevel Black Phosphate Din6796 1

Grade 10.9 Belleville Spring Washer M3.5 Bevel Black Phosphate Din6796 2



Package

Grade 10.9 Belleville Spring Washer M3.5 Bevel Black Phosphate Din6796 3 Grade 10.9 Belleville Spring Washer M3.5 Bevel Black Phosphate Din6796 4



FAQ

Q: Are you trading company or manufacturer?

A: We are factory.


Q: What is your payment method?
A: T/T. For small order less than 1000USD, 100% in advance to reduce the bank charges. For order more than 1000USD, 30% in advance and balance before shipment.

Q: Can you provide a sample?
A: Yes, our sample is provided free of charge, but not including the cost of freight.

Q: What's your delivery time?
A: Generally 15 days if the goods are in stock. If not in stock we’ll need 30 working days to produce. It depends on quantity.


Q: How to Custom-made?
A: If you have a new product drawing or a sample, please send to us, and we can custom-made for you. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.

Q: Which mode of transport would be better?
A: In general, we advice to make delivery by sea. Also we respect your views of other transportation as well.
