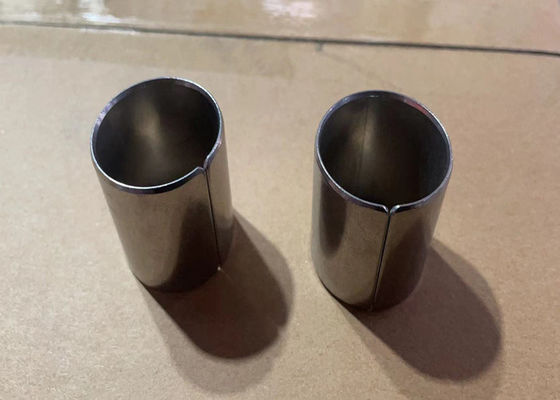

M6 Locating Hollow Dowel Pin Bushings GD100

Basic Information
Place of Origin: Anhui, China
Brand Name: Paiensi
Certification: ISO9001
Model Number: 6
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: bulk + carton +pallet
Delivery Time: 30 days
Payment Terms: T/T
Part Name: Dowel Bushing Material: Steel
Size: 6 Standard: GD100, SD200
Place Of Origin: Anhui, China Shipping: FOB
Package: Bulk + Carton + Pallet Port: Shanghai
High Light:

GD100 hollow dowel pin


Locating hollow dowel pin


GD100 locating bushings

Alignment Dowels Bushings Locating Bushings Ground Hollow Dowels DB100 SD200 GD100

Features and Benefits of the product as follows.

Spring action – The diameter of the bushing is slightly larger than the hole. The spring action of the Bushing allows it to be installed into a drilled or cored hole and assume the diameter of the hole. It is self-retained once installed.

Staggered seam - The staggered seam prevents interlocking, making these Bushings suitable for automatic feeding and eliminating the need to separate them during manual assembly.

Lead-in chamfers - The beveled chamfer around the entire periphery of the Bushing is designed to facilitate ease of insertion and to avoid skiving of the Bushing during installation.

Material steel
Finish oil, plain
Shape cylinder
size 6
OD 6.004-6.012
T 0.9
OB 5.8max
Certificate ISO9001
MOQ negotiable
Price negotiable
Place of origin Anhui, China
Freight by sea
Shipping FOB Shanghai
Lead time 30 days

M6 Locating Hollow Dowel Pin Bushings GD100 0



65Mn Phosphate Spring Roll Pins 45mm En ISO 8752 Black Phosphate 1

65Mn Phosphate Spring Roll Pins 45mm En ISO 8752 Black Phosphate 2



65Mn Phosphate Spring Roll Pins 45mm En ISO 8752 Black Phosphate 3 65Mn Phosphate Spring Roll Pins 45mm En ISO 8752 Black Phosphate 4



Q: Are you trading company or manufacturer?

A: We are factory.

Q: What is your payment method?
A: T/T. For small order less than 1000USD, 100% in advance to reduce the bank charges. For order more than 1000USD, 30% in advance and balance before shipment.

Q: Can you provide a sample?
A: Yes, our sample is provided free of charge, but not including the cost of freight.

Q: What's your delivery time?
A: Generally 15 days if the goods are in stock. If not in stock we’ll need 30 working days to produce. It depends on quantity.

Q: How to Custom-made?
A: If you have a new product drawing or a sample, please send to us, and we can custom-made for you. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.

Q: Which mode of transport would be better?
A: In general, we advice to make delivery by sea. Also we respect your views of other transportation as well.
