|Part Name:||Roll Pin, Cotter Pin||Material:||65Mn|
|Place Of Origin:||Anhui, China||Package:||Neutral|

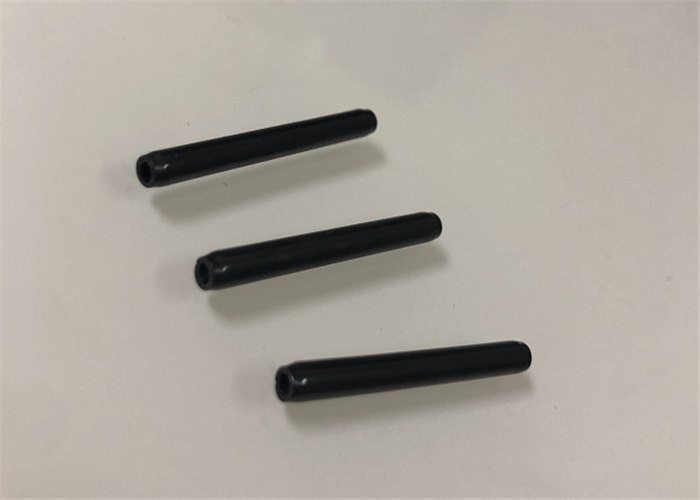

M6x35 coiled roll pin,
ISO 9001 coiled roll pin,
M6x35 stainless steel roll pins
M6x35 Heavy duty spring pin ISO8748 elastic cylinder pin DIN7344 coiled spring pin spirol black phosphated roll pin coiled parallel pin ASME cotter pin spiral pin
A coiled spring pin, also known as a spiral pin, is a self retaining engineered fastener manufactured by roll forming metal strip into a spiral cross section of 2 1⁄4 coils. Coiled spring pins have a body diameter larger than the recommended hole diameter and chamfers on both ends to facilitate starting the pin into the hole, the spring action of the pin allows it to compress as it assumes the diameter of the hole. Often referred to as a 'spiril' pin in the Midlands.
Squeeze pins closed and install them in a hole slightly smaller than the pin. Tension holds them tight against the hole wall. The chamfered ends aid insertion.
Breaking strength is measured as double shear, which is the force required to break a pin into three pieces.
|Specification||from size1.5 to 12mm|
|Hardness||as per the standard|
|Application||automotive industry, wind power machinery, engineering machinery, electrical tool, electrical appliance, general machinery etc.|
|Place of origin||Anhui, China|
|Lead time||30 days|
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What is your payment method?
A: T/T. For small order less than 1000USD, 100% in advance to reduce the bank charges. For order more than 1000USD, 30% in advance and balance before shipment.
Q: Can you provide a sample?
A: Yes, our sample is provided free of charge, but not including the cost of freight.
Q: What's your delivery time?
A: Generally 15 days if the goods are in stock. If not in stock we’ll need 30 working days to produce. It depends on quantity.
Q: How to Custom-made?
A: If you have a new product drawing or a sample, please send to us, and we can custom-made for you. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
Q: Which mode of transport would be better?
A: In general, we advice to make delivery by sea. Also we respect your views of other transportation as well.
