Part Name: | Spilt Pin | Material: | Steel |
---|---|---|---|
Size: | 20mm | Shape: | Cylinder |
Length: | 100mm | Surface: | Phosphate |
Standard: | DIN,ISO,ASME,JIS | Color: | Black |
Place Of Origin: | Anhui, China | Package: | Neutral |
High Light: | 100mm metric spring pins,DIN1481 metric spring pins,DIN1481 20mm pin |

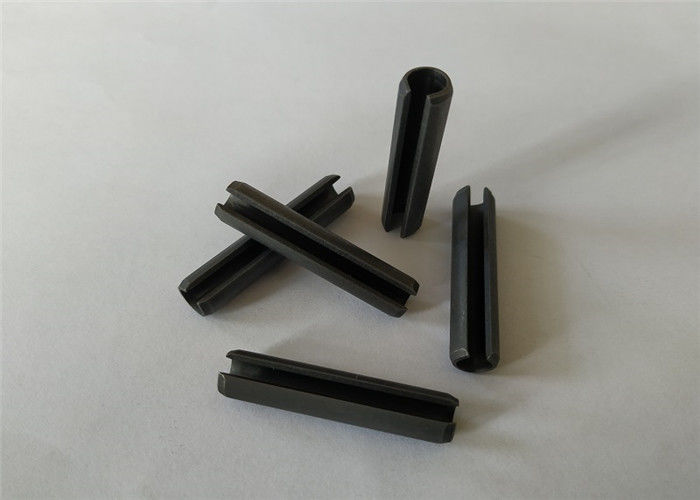

M20x100 spring steel stainless steel Heavy duty slotted spring pin elastic cylinder pin ISO8752 spring tension pin spilt pin DIN1481 expansion pin cotter pin dowel pin clamping pin used in machinery railway aviation automotive industry agriculture tools furniture mining plastic
A spring pin is a mechanical fastener that secures the position of two or more parts of a machine relative to each other. Spring pins have a body diameter which is larger than the hole diameter, and a chamfer on either one or both ends to facilitate starting the pin into the hole.
Install these pins into a hole slightly smaller than the pin diameter. They have at least one chamfered end, which means the end is angled to make insertion easier.
The pins can transmit high shear forces and are resistant to shocks and impacts due to their spring properties.
Material | 65Mn |
Finish | phosphate |
Shape | cylinder |
size | 20mm |
length | 100mm |
Standard | ISO8752 |
Color | black |
Hardness | as per the standard |
Certificate | ISO9001 |
Application | automotive industry, wind power machinery, engineering machinery, electrical tool, electrical appliance, general machinery etc. |
MOQ | negotiable |
Price | negotiable |
Place of origin | Anhui, China |
Freight | by sea |
Shipping | FOB Shanghai |
Lead time | 30 days |
Workshop
Package
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: What is your payment method?
A: T/T. For small order less than 1000USD, 100% in advance to reduce the bank charges. For order more than 1000USD, 30% in advance and balance before shipment.
Q: Can you provide a sample?
A: Yes, our sample is provided free of charge, but not including the cost of freight.
Q: What's your delivery time?
A: Generally 15 days if the goods are in stock. If not in stock we’ll need 30 working days to produce. It depends on quantity.
Q: How to Custom-made?
A: If you have a new product drawing or a sample, please send to us, and we can custom-made for you. We will also provide our professional advices of the products to make the design to be more realized & maximize the performance.
Q: Which mode of transport would be better?
A: In general, we advice to make delivery by sea. Also we respect your views of other transportation as well.
